Outer spherical bearing with slider seat

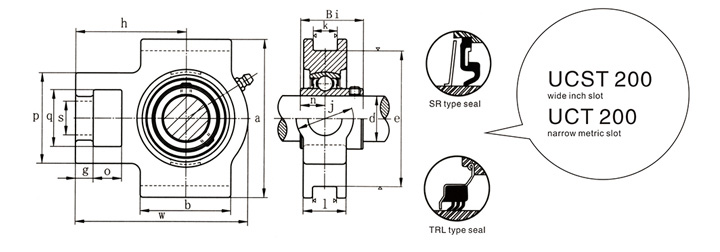

The UCT with slider seat outer spherical bearing is a bearing assembly composed of a bearing and a bearing seat with guide groove. The bearing seat T can be connected to components such as UK and UEL. There are two sliding grooves on the upper and lower parts of the bearing seat, which can move back and forth on the frame, making it most suitable for situations where the distance between shafts needs to be adjusted. The shaft can also move during mechanical operation. The load borne by the UCT300 series is greater than that of the UCT200 series. This type of ball bearing with a seat is commonly used on drive shafts such as belts and chains.
