Equipped with diamond shaped outer spherical bearings

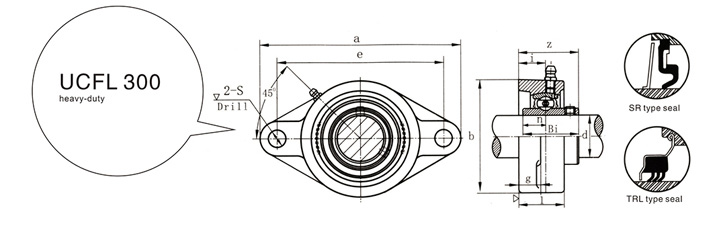

  The bearing seat FL can be combined with UC to form two series, UCFL200 and UCFL300. Similarly, it can also be integrated with components such as UK, UEL (NA), UB, SB, etc. The UCFL series combination is lightweight in structure and easy to install, suitable for installation in small transmission parts. Like the UCF series, it is also suitable for installation on vertical surfaces such as mechanical sides. Moreover, due to the same center distance between the two mounting bolt holes of the diamond bearing seat and the two diagonal bolt holes of the square bearing seat, they are interchangeable with each other. The SBLF200 series with seat outer spherical bearings is designed with a diamond seat bearing for lightweight purposes. There are a total of 7 models in this series, from SBLF201 to SBLF207. The bearing seat LF can also be assembled with UB (SB) and UE (SA) as components. This type of product is mainly used in packaging machinery, fruit sorting machines and other equipment.
